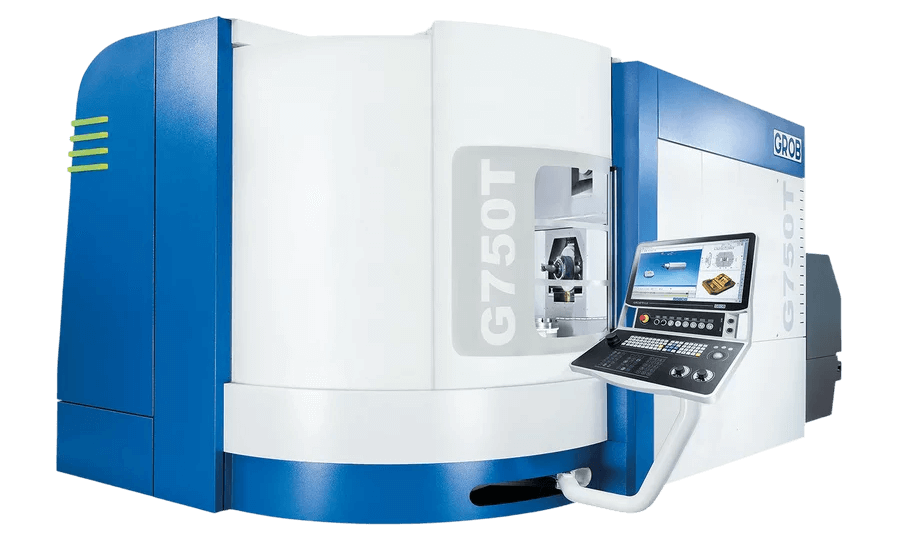

G750T
Engineered to machine large parts.
With absolute accuracy.
The 5-axis mill-turn universal machine
Technical Details
-
Working travelsin X-/Y-/Z-axis (mm)1,000/1,100/1,175
-
Table diameter(mm)950
-
Max. speedsin X-/Y-/Z-axis (m/min)60/50/75
-
Table loadwithout/with pallet (kg)1,500/1,000
-
Interference diameter(mm)1,280
-
B-axis speedn(minmax)500
-
Chip-to-chip time t1according to VDI 2852 (s) relative to speed (rpm)3.8
-
Total weight(kg)34,500
-
Positioning accuracyin X-/Y-/Z-axis (mm)0.006
-
Tool length for double disk-type tool magazine HSK-A/T63(front/back) (mm)400/650
The benefits at glance
The G750T mill-turn machining center is designed to machine large parts from the most diverse materials with incredible stability and precision down to the very last detail.
-
High
productivity -
Optimized
availability -
High visibility
-
Flexible
applications -
Maintainable
-
Compact
design -
Optimized
access
applications -
Round-the-
clock service
The horizontal spindle position permits the longest possible Z-travel path and optimum chip fall.

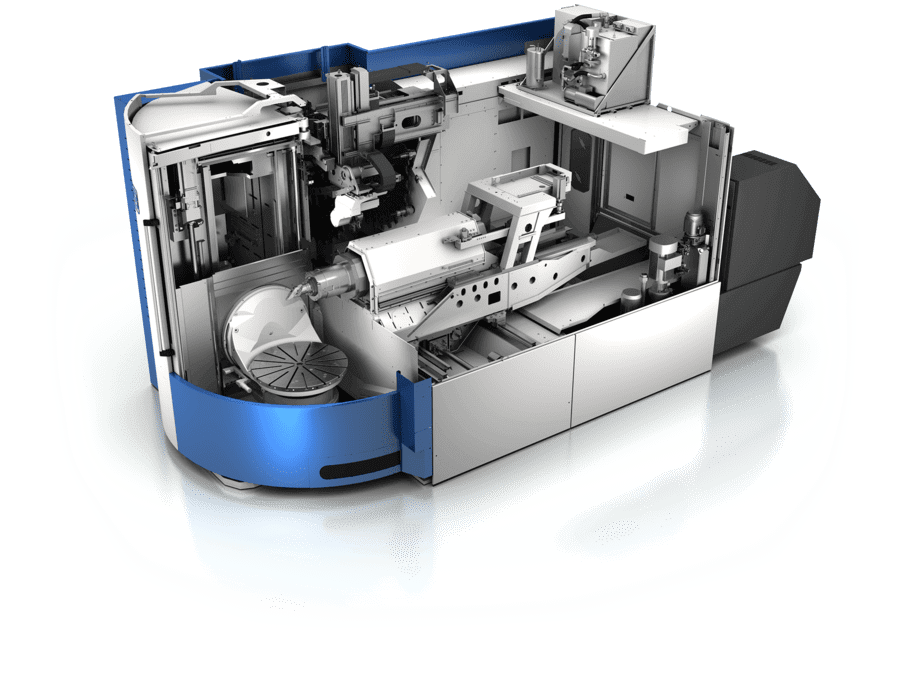

The unique arrangement of the three linear axes minimizes the distance between the guides and the machining point (TCP), lending the machine considerable stability.

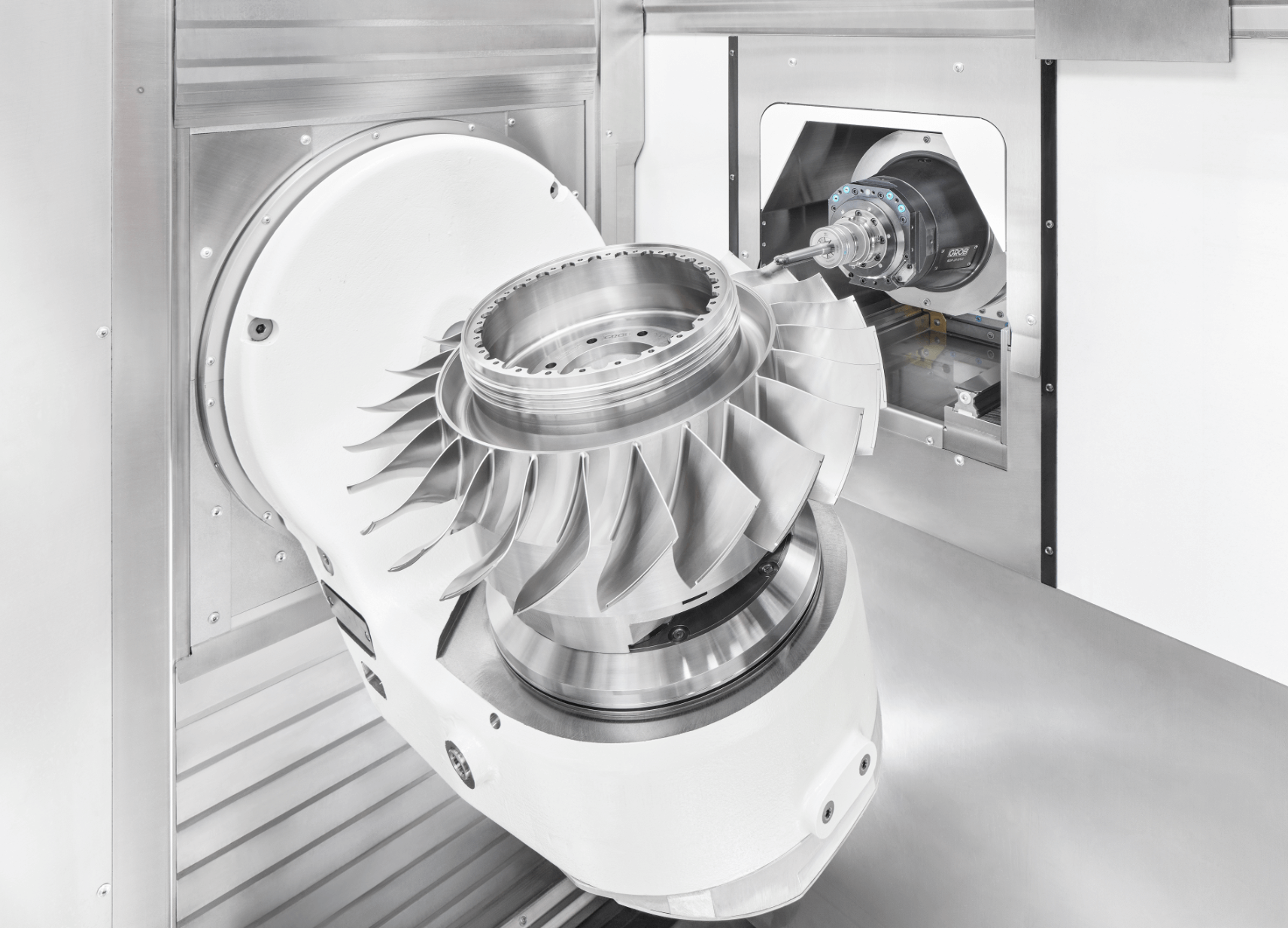

The tunnel concept allows the largest possible component – even in the case of with extremely long tools – to be swiveled and machined within the work area without collision.

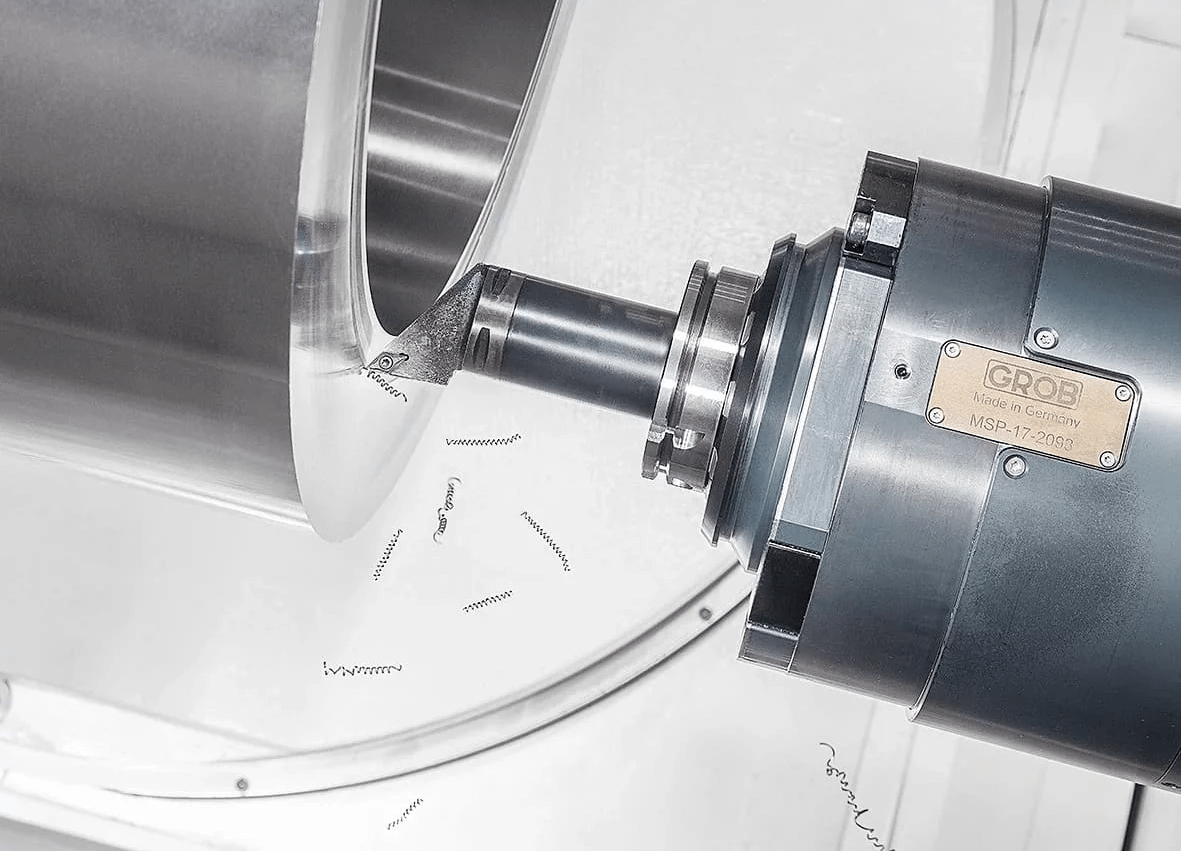

Three linear and two rotary axes permit 5-sided machining, 5-axis simultaneous interpolation as well as GROB TRAORI turning. With a swivel range of 230 degrees in the A-axis and 360 degrees in the B-axis, these machines offer the greatest possible positioning flexibility.
Redefining Productivity
in Large-Part Machining.
Meet the Machine
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore. Lorem ipsum dolor sit amet, consetetur sadipscing elit.
Meet the Machine
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore. Lorem ipsum dolor sit amet, consetetur sadipscing elit.
Meet the Products
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod
tempor invidunt ut labore. Lorem ipsum dolor sit amet, consetetur sadipscing elit.

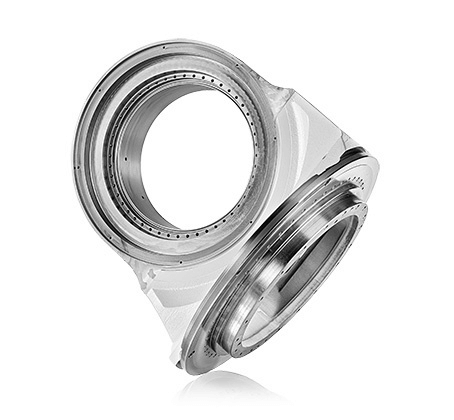

Tilting table
- Industry Mechanical engineering
- Material GG25
- Dimensions of raw material (mm) Cast blank
- Motorized spindle 10,000 rpm
Tilting table
- Industry Mechanical engineering
- Material GG25
- Dimensions of raw material (mm) Cast blank
- Motorized spindle 10,000 rpm
Tilting table
- Industry Mechanical engineering
- Material GG25
- Dimensions of raw material (mm) Cast blank
- Motorized spindle 10,000 rpm
